SKU: 12438

WPW10340326 Oven Control Board Repair

Our services are fast and easy. Send us your failed range/stove/oven control circuit board. We will quickly repair your control circuit board. We do more than just repair the part, we go to the root of the problem and use the high quality parts to ensure the issue does not return.
  • Estimated Repair Time is 3-5 business days.
  • 2 Year Warranty
  • Real-Time Repair Tracking
  • Our service is 100% guaranteed or your money back. Order today and save!
  • International Shipping Available
  • Free shipping available at online checkout!
$139.99
$229.99
Save: 39%
Repair yours
Send your original part for repair service
$139.99
$229.99
Save: 39%
Service Price:
Options Price:
Total:
In-stock item
Send me a good working part
Description

Description

This is a repair service for WPW10340326 Oven Control Board Repair.
For the following brands: Maytag

This repair is also for the following similar range/stove/oven control board part numbers:
W10340326, WPW10340326.

Why Repairing with UpFix is the Better Choice

  1. Cost-Effective: Avoid the high cost of full appliance replacement. Repairing your control board with us can save you substantial amounts of money, preserving your appliances functionality without breaking the bank.
  2. Time-Efficient: Choosing to repair rather than replace can drastically reduce the downtime of your appliance. UpFix aims to restore your kitchen’s functionality quickly, eliminating the hassle of searching and waiting for new parts.
  3. Eco-Friendly: Repairing your appliance with UpFix is a step towards sustainability. By refurbishing your existing control board, you help reduce electronic waste and conserve natural resources, supporting environmental conservation efforts.

Our Expert Repair Process

When you send your defective control board to UpFix, it receives more than just a repair. Our technicians conduct a comprehensive diagnostic to identify and rectify faults. We replace not only the failing components but also upgrade other elements known to degrade over time, ensuring your control board returns to you in top condition.

How It Works


Once we receive your part, our trained and IPC certified technicians will run tests to identify the source of the problem. We will rebuild your part, replacing not only the failed components, but all components that are usually known to fail or go bad in this part. We want to make your experience as effortless as possible. All you have to do is send your part to us. Then after receiving the part back from us, just reinstall it and you’re back in business!

Wide Coverage

Our services are designed to accommodate a multitude of part numbers and models, enhancing the accessibility of our expert repairs across different brands.

What to Expect from UpFix

  • Mail your faulty part to us.
  • Our experts will rebuild and rigorously test your control board.
  • Receive your like-new control board, reinstall it, and enjoy your fully functional appliance once again.

Added Benefits of Choosing UpFix

  • Estimated Repair Time is 3-5 business days.

  • International shipping options to the USA and Canada.
  • Comprehensive testing post-repair to guarantee performance.
  • A 24-month warranty and lifetime phone support, underlining our commitment to quality and customer satisfaction.
  • We uphold the highest standards of integrity and community support in all our business practices.

Removal Instructions

WPW10340326 Oven Control Board Repair

  1. Turn off breaker.
  2. Unplug your unit from the outlet.
  3. Take pictures of each step of the removal process to ensure all wires are correctly reinstalled. Failure to do so may cause severe damage or fires. Failure to reinstall correctly will void all warranties.
  4. Remove the part that needs to be repaired.
  5. Start your order today!
  6. We will provide you with a shipping label at checkout.


We take pride in our work and will take it a step further and fully inspect your control board and will replace failure prone components or parts that may be failing in the future. Each control board is fully tested to make sure it passes a full functional test.

Our service is 100 percent guaranteed or your money back. We stand by our services – If the part is going to fail, itll fail within the first 24 months. Thats why we got you covered with a 24-month warranty and lifetime phone support when you need us

Our goal is to save you hundreds of dollars, while continuing to provide an eco-friendly solution that reduces pollution. We drive our business towards consistent and profitable growth, with integrity and a commitment to the people and communities where we live and work. Our service is 100% guaranteed or your money back.



This repair service will fix these issues:

  • Failed after power outage
  • Fn Error Code
  • No bake function
  • No broil function
  • Oven does not reach temperature
  • Oven exceeds the temperature setpoint or will not turn off
  • Unit has no power and is unresponsive
  • F01
  • F02
  • F03
  • F04
  • F05
  • F06
  • F1
  • F1 E0
  • F1 E1
  • F1 E2
  • F1 E5
  • F1 E7
  • F1 E9
  • F1-1
  • F12
  • F1-2
  • F1-3
  • F1-4
  • F1-7
  • F1-9
  • F2
  • F2 E1
  • F21
  • F25
  • F3
  • F3 E0
  • F3 E1
  • F3 E2
  • F3 E3
  • F3-1
  • F3-2
  • F36 OR F37
  • F4 E4
  • F42
  • F43
  • F5
  • F5 E0
  • F5 E1
  • F5 E3
  • F5 E4
  • F58
  • F6
  • F6 E1
  • F6 E0
  • F6 E2
  • F6 E3
  • No display but unit does power

Don't send your part for repair if
Do NOT send in for repair if the fault you have is indicating a bad touch pad (keypad). If your fault indicates a thermal issue or heating element issue, then do NOT send in for repair until they are checked/replaced. The typical thermal probe should measure near 1100 at room temperature (+/- 200ohms). The typical heating element measures 20 to 40 ohms. Check your manual for a more accurate information.


Will this service fix my problems?

A full diagnostic check should first be performed to eliminate all other possible causes for your symptoms, even if the symptoms match those specified on the common fault description.

If you send a unit in good working condition due to misdiagnosis, and our testing determines that there are no issues or faults with the unit, or if the part is beyond repair, then you will only be responsible for the shipping costs and a bench test fee of $39.99 may be applied.

IMPORTANT! If you are not sure that this part is the cause of the fault then we recommend that you do not go ahead with this purchase and instead seek further professional advice and diagnosis.


See Why Our Customers Love UpFix!






Removal Instructions

1) Turn off breaker.
2) Unplug your unit from outlet.
3) Take pictures each step of the removal process to ensure all wires are correctly reinstalled. Failure to do so may cause severe damage or fires. Failure to reinstall corectly will void all warranties.
4) Remove the part that needs to be repaired.
5) Use our website to start your order and send your part in for repair.

Benefits of using us:
  • Free return trip shipping
  • Save hundreds of dollars
  • High quality components
  • Fast & easy process
  • 100% guaranteed or your money back
  • Amazing customer service and support
  • IPC certified technicians (highest standard of quality craftsmanship)
  • Guaranteed OEM products
  • Refurbished and tested to meet manufacturers specifications
  • Hassle-free warranty that is much better than the warranties you get for new replacements.
How It Works

How It Works

Our services are fast and easy. Send us your failed part. We do more than just repair the part, we go to the root of the problem and use the best quality parts to ensure the issue does not return.

We take pride in our work and will take it a step further and fully inspect your control board and will replace failure prone components or parts that may be failing in the future. Each control board is fully tested to make sure it passes a full functional test. Our service is 100 percent guaranteed or your money back.


  1. Locate your product on our website.
  2. Match your symptoms with our descriptions to diagnose the issue.
  3. Place a repair order and receive a shipping label.
  4. Send your item to us.
  5. We'll repair and promptly ship it back to you!
Warranty

Warranty

Our service is 100 percent guaranteed or your money back.

For a full 24 months, our no-hassle warranty covers the repair. We will fix the item again if the repair fails within 24 months. If the component is not repairable, we will, at our discretion, either replace the part entirely or refund the cost of the repair.

We stand by our services – If the part is going to fail, itll fail within the first 3 months. Thats why we got you covered with a 24-month warranty and lifetime phone support when you need us

Part Numbers

WPW10340326, W10340326

Error Codes
CodeDescriptionRecommended Action
ES or E5 Energy Save is active (some models)The product is in Energy Save mode. The Energy Save feature places the control and clock into a sleep mode that reduces power consumption by deactivating the display when the product is not being used. If Energy Save mode is activated, each time the product is idle for 5 minutes with only the time of day shown, the display will show the letters “ES” followed by “On” twice. The display will then be blank until a control key (e.g. Bake or Broil) is pressed or the oven door is opened. The control will then perform any of its operations in response to additional key presses. Typical operation of the Energy Save function To enter the Energy Save mode: The oven and control must be idle with the time of day shown on the display. Press and hold CLOCK for 10 seconds. The control will beep, and the display will show the letters “ES” followed by “On” twice. The display will return to the time of day. To exit Energy Save mode: Press and hold the CLOCK key for 10 seconds. The control will beep, and the display will show the letters “ES” followed by “Off” twice. The display will return to the time of day. Press any key on the control to display the Time of Day. See the “Electronic Oven Controls” section of your Owners Manual for more information. If you would like to download or view product literature for your appliance, please visit our Manuals and Literature page. Reset power to the product If the "ES" display does not clear after trying the above, reset power to the product by doing the following: Power unit down by turning off the circuit breaker(s) for one (1) minute. Power unit up by turning on the circuit breaker(s). Monitor the oven for one (1) minute to ensure the error code does not display again. Verify oven operation.
F0Control Board FailureSend control board to UpFix for repair.
F1Control Board FailureSend control board to UpFix for repair.
F1-E0EEPROM Communication ErrorDisconnect power for at least 30 seconds and then reconnect. Allow at least a minute after power has been restored and if error code reappears. If issue persist, then replace main control board
F1-E1EEPROM Checksum ErrorDisconnect power for at least 30 seconds and then reconnect. Allow at least a minute after power has been restored and if error code reappears. If issue persist, then replace main control board.
F1-E2UL A/D Error(s)Disconnect power for at least 30 seconds and then reconnect. Allow at least a minute after power has been restored and if error code reappears, Send control board to UpFix for repair.
F1-E3Wiring Harness Cavity Size Does Not Match Stored ValueCheck the jumpers in the harness to make sure they agree with the actual oven size.
F1-E4Model ID ErrorDisconnect power for at least 30 seconds and then reconnect. Allow at least a minute after power has been restored and if error code reappears, Send control board to UpFix for repair.
F1-E5Calibration ShiftedDisconnect power for at least 30 seconds and then reconnect. Allow at least a minute after power has been restored and if error code reappears, Send control board to UpFix for repair.
F1-E6Latch Signal Mismatch ErrorDisconnect power for at least 30 seconds and then reconnect. Allow at least a minute after power has been restored and if error code reappears, Send control board to UpFix for repair.
F1-E9Stack OverflowDisconnect power for at least 30 seconds and then reconnect. Allow at least a minute after power has been restored and if error code reappears, Send control board to UpFix for repair.
F2Oven Temperature Is Too HighCheck for welded contacts on bake and broil relays. If present, Send control board to UpFix for repair.. For SELF CLEAN models, check door lock operation. Check sensor, sensor harness, and the sensor harness connection at sensor and oven control. Also check for any causes of high resistance in the oven temperature sensor circuit. Remember: The oven control board (clock) measures resistance of sensor circuit, not actual oven temperature.
F2-E0Shorted Touch Pad (Keypad)Check the connection between the touch pad (keypad) and control board (clock) to make sure it is secure. Select the cancel function and wait 60 seconds. If error code reappears then replace the touch pad, or touch pad and/or control board (clock) if all one assembly.
F2-E1Touch Pad (Keypad) Cable UnpluggedCheck the connection between the touch pad (keypad) and control board (clock) to make sure it is secure. Select the cancel function and wait 60 seconds. If error code reappears then replace the touch pad, or touch pad and control board (clock) if all one assembly.
F2-E5Cancel Key Line OpenCheck the connection between the touch pad (keypad) and control board (clock) to make sure it is secure. Select the cancel function and wait 60 seconds. If error code reappears then replace the touch pad, or touch pad and/or control board (clock) if all one assembly.
F2-E6Cancel Key Line OpenCheck the connection between the touch pad (keypad) and control board (clock) to make sure it is secure. Select the cancel function and wait 60 seconds. If error code reappears then replace the touch pad, or touch pad and/or control board (clock) if all one assembly.
F3Open Oven Temperature Sensor (RTD)Replace oven temperature sensor (RTD).
F3-E (All Codes)Oven Temperature Sensor (RTD) or Warming Drawer DefectReplace oven temperature sensor (RTD). If issue persist, send to UpFix for repair.
F4Shorted Oven Temperature Sensor (RTD)Replace oven temperature sensor (RTD)
F4-E1Meat Probe DefectThis error indicates a problem with either the probe, receptacle, or probe circuit. Check the probe for pinched wires and make sure there is no condensation or contamination on receptacle. If ok, replace probe.
F5Control Board FailureSend control board to UpFix for repair.
F5-E (All Codes)Door Switch DefectThis occurs when the door switches do not match. If door is latched, disconnect power from unit and check wires and connections. If damage is found, replace appropriate part. If connections are not damaged, reconnect power and hold down any key until the F5 error clears. Once the F2 code appears, select cancel and observe for one minute for errors. If door is NOT latched, disconnect power from unit and check wires and connections. If damage is found, replace appropriate part. If connections are not damaged, measure door switch (door open = latch open) and latch switch (unlatch = switch open) and replace either if defective. If corrections are made during any step, power should be reconnected and the unit should be tested. Press and hold any key to clear the error code and F2 code should appear. Select cancel and observe for one minute for errors. If error continues, disconnect power and send to UpFix for repair.
F6-E0Return Line Not ConnectedThis error should appear within 60 seconds after power up to appliance. Send control board to UpFix for repair.
F7Function Key StuckReplace touchpad
F7-E1Common Switch Wire Is DefectiveThis error occurs when common wire to latch switch and door switch is shorted. Check all connections at control board and at the latch switch and door switch. If connections are ok, then check individual switches as outlined for the F5 error code. Note: Double ovens will have two of each switch and one common wire.
F8Control Board FailureSend control board to UpFix for repair.
F9Oven Door Lock FailureCheck door lock switches and wiring. Check for stuck lock switch.
Models

This control board may be found in models similar to the following:

MGR8850DS0, MGR8850DS1, MGR8850DS2, MGR8850DS3

Related products
sale!
EBR74164805 LG Range/Stove/Oven Control Board Repair
EBR74164805 LG Range/Stove/Oven Control Board Repair
$139.99 $239.99
Save: 42%
View Details
sale!
3196762 Whirlpool Range/Stove/Oven Control Board Repair
3196762 Whirlpool Range/Stove/Oven Control Board Repair
$139.99 $229.99
Save: 39%
View Details
sale!
5777M22360 Maytag Range/Stove/Oven Control Board Repair
5777M22360 Maytag Range/Stove/Oven Control Board Repair
$139.99 $239.99
Save: 42%
View Details
sale!
PS731496 Oven Control Board Repair
PS731496 Oven Control Board Repair
$139.99 $249.99
Save: 44%
View Details
×
WPW10340326 Oven Control Board Repair
2 images

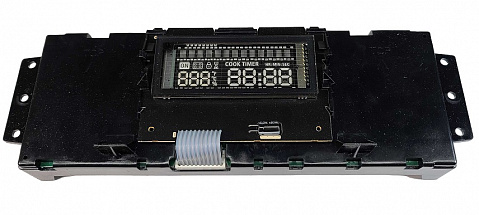

  • WPW10340326 Oven Control Board Repair image

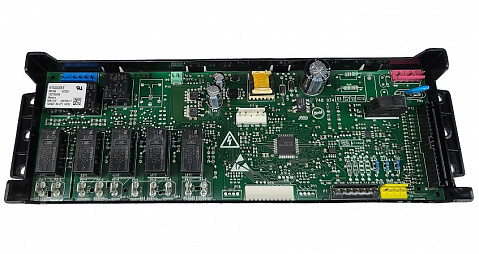

  • WPW10340326 Oven Control Board Repair image
