SKU: 46593

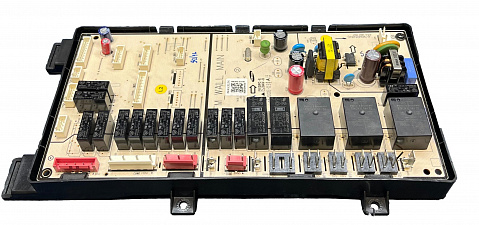

Samsung DE9304045B Range/Stove/Oven Control Board Repair

Our services are fast and easy. Send us your failed range/stove/oven control circuit board. We will quickly repair your control circuit board. We do more than just repair the part, we go to the root of the problem and use the high quality parts to ensure the issue does not return.
  • Estimated Repair Time is 3-5 business days.
  • 2 Year Warranty
  • Real-Time Repair Tracking
  • Our service is 100% guaranteed or your money back. Order today and save!
  • International Shipping Available
  • Free shipping available at online checkout!
$159.99
$159.99
Service Price:
Options Price:
Total:
Description

Description

This is a repair service for Samsung DE9304045B Range/Stove/Oven Control Board Repair.
For the following brands: Samsung

This repair is also for the following similar range/stove/oven control board part numbers:
DE9304045B.

Why Repairing with UpFix is the Better Choice

  1. Cost-Effective: Avoid the high cost of full appliance replacement. Repairing your control board with us can save you substantial amounts of money, preserving your appliances functionality without breaking the bank.
  2. Time-Efficient: Choosing to repair rather than replace can drastically reduce the downtime of your appliance. UpFix aims to restore your kitchen’s functionality quickly, eliminating the hassle of searching and waiting for new parts.
  3. Eco-Friendly: Repairing your appliance with UpFix is a step towards sustainability. By refurbishing your existing control board, you help reduce electronic waste and conserve natural resources, supporting environmental conservation efforts.

Our Expert Repair Process

When you send your defective control board to UpFix, it receives more than just a repair. Our technicians conduct a comprehensive diagnostic to identify and rectify faults. We replace not only the failing components but also upgrade other elements known to degrade over time, ensuring your control board returns to you in top condition.

How It Works


Once we receive your part, our trained and IPC certified technicians will run tests to identify the source of the problem. We will rebuild your part, replacing not only the failed components, but all components that are usually known to fail or go bad in this part. We want to make your experience as effortless as possible. All you have to do is send your part to us. Then after receiving the part back from us, just reinstall it and you’re back in business!

Wide Coverage

Our services are designed to accommodate a multitude of part numbers and models, enhancing the accessibility of our expert repairs across different brands.

What to Expect from UpFix

  • Mail your faulty part to us.
  • Our experts will rebuild and rigorously test your control board.
  • Receive your like-new control board, reinstall it, and enjoy your fully functional appliance once again.

Added Benefits of Choosing UpFix

  • Estimated Repair Time is 3-5 business days.

  • International shipping options to the USA and Canada.
  • Comprehensive testing post-repair to guarantee performance.
  • A 24-month warranty and lifetime phone support, underlining our commitment to quality and customer satisfaction.
  • We uphold the highest standards of integrity and community support in all our business practices.

Removal Instructions

Samsung DE9304045B Range/Stove/Oven Control Board Repair

  1. Turn off breaker.
  2. Unplug your unit from the outlet.
  3. Take pictures of each step of the removal process to ensure all wires are correctly reinstalled. Failure to do so may cause severe damage or fires. Failure to reinstall correctly will void all warranties.
  4. Remove the part that needs to be repaired.
  5. Start your order today!
  6. We will provide you with a shipping label at checkout.


We take pride in our work and will take it a step further and fully inspect your control board and will replace failure prone components or parts that may be failing in the future. Each control board is fully tested to make sure it passes a full functional test.

Our service is 100 percent guaranteed or your money back. We stand by our services – If the part is going to fail, itll fail within the first 24 months. Thats why we got you covered with a 24-month warranty and lifetime phone support when you need us

Our goal is to save you hundreds of dollars, while continuing to provide an eco-friendly solution that reduces pollution. We drive our business towards consistent and profitable growth, with integrity and a commitment to the people and communities where we live and work. Our service is 100% guaranteed or your money back.



This repair service will fix these issues:

  • Failed after power outage
  • Fn Error Code
  • No bake function
  • No broil function
  • Oven does not reach temperature
  • Oven exceeds the temperature setpoint or will not turn off
  • Unit has no power and is unresponsive

Don't send your part for repair if
Do NOT send in for repair if the fault you have is indicating a bad touch pad (keypad). If your fault indicates a thermal issue or heating element issue, then do NOT send in for repair until they are checked/replaced. The typical thermal probe should measure near 1100 at room temperature (+/- 200ohms). The typical heating element measures 20 to 40 ohms. Check your manual for a more accurate information.


Will this service fix my problems?

A full diagnostic check should first be performed to eliminate all other possible causes for your symptoms, even if the symptoms match those specified on the common fault description.

If you send a unit in good working condition due to misdiagnosis, and our testing determines that there are no issues or faults with the unit, or if the part is beyond repair, then you will only be responsible for the shipping costs and a bench test fee of $39.99 may be applied.

IMPORTANT! If you are not sure that this part is the cause of the fault then we recommend that you do not go ahead with this purchase and instead seek further professional advice and diagnosis.


See Why Our Customers Love UpFix!






Removal Instructions

1) Turn off breaker.
2) Unplug your unit from outlet.
3) Take pictures each step of the removal process to ensure all wires are correctly reinstalled. Failure to do so may cause severe damage or fires. Failure to reinstall corectly will void all warranties.
4) Remove the part that needs to be repaired.
5) Use our website to start your order and send your part in for repair.

Benefits of using us:
  • Free return trip shipping
  • Save hundreds of dollars
  • High quality components
  • Fast & easy process
  • 100% guaranteed or your money back
  • Amazing customer service and support
  • IPC certified technicians (highest standard of quality craftsmanship)
  • Guaranteed OEM products
  • Refurbished and tested to meet manufacturers specifications
  • Hassle-free warranty that is much better than the warranties you get for new replacements.
How It Works

How It Works

Our services are fast and easy. Send us your failed part. We do more than just repair the part, we go to the root of the problem and use the best quality parts to ensure the issue does not return.

We take pride in our work and will take it a step further and fully inspect your control board and will replace failure prone components or parts that may be failing in the future. Each control board is fully tested to make sure it passes a full functional test. Our service is 100 percent guaranteed or your money back.


  1. Locate your product on our website.
  2. Match your symptoms with our descriptions to diagnose the issue.
  3. Place a repair order and receive a shipping label.
  4. Send your item to us.
  5. We'll repair and promptly ship it back to you!
Warranty

Warranty

Our service is 100 percent guaranteed or your money back.

For a full 24 months, our no-hassle warranty covers the repair. We will fix the item again if the repair fails within 24 months. If the component is not repairable, we will, at our discretion, either replace the part entirely or refund the cost of the repair.

We stand by our services – If the part is going to fail, itll fail within the first 3 months. Thats why we got you covered with a 24-month warranty and lifetime phone support when you need us

Part Numbers

DE9304045B

Error Codes
CodeDescriptionRecommended Action
C-20, C-21, C-22Sensor malfunctions Turn off the oven and then restart. If the problem continues, turn off the power for 30 seconds or more and then reconnect
C-d0 This displays when a button is pressed and held for a period of time. Clean the buttons and make sure there is no water on/around them. Turn off the oven and try again.
C-d1Door lock malfunctionsTurn off the oven and then restart. If the problem continues, turn off the power for 30 seconds or more and then reconnect.
C-F0If there is no communication between the main PCB and sub PCB.Turn off the oven and then restart. If the problem continues, turn off the power for 30 seconds or more and then reconnect.
C-F1Only occurs during EEPROM Read/WriteTurn off the oven and then restart. If the problem continues, turn off the power for 30 seconds or more and then reconnect
C-F2Occurs when a communication problem is maintained between the Touch IC and Main or Sub micom.Turn off the oven and then restart. If the problem continues, turn off the power for 30 seconds or more and then reconnect.
dC, dEDivider check needed If the divider is removed during cooking in Dual cook mode. If the divider is inserted during cooking in Single cook modeThe divider must not be removed during cooking in Dual cook mode. Turn off the oven and then restart. If the problem continues, turn off the power for 30 seconds or more and then reconnect
Pr EThis code means the oven is preheatingPr E will display until the temperature is reached at the setting temperature. When the temperature reaches at the desired temperature, Pr E will disappear. While preheating, please keep the door closed.
S-01 Safety shutoff Oven has continued operating at a set temperature for an extended time period. Under 105°C: 16 hours From 105°C to 240°C: 8 hours From 245°C to max: 4 hoursThis is not a system failure. Turn off the oven and remove the food. Then try again normally
