SKU: 23711

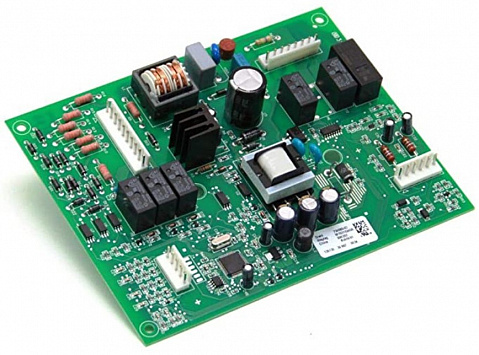

700634 Bosch Dishwasher Control Board Repair

Our services are fast and easy. Send us your failed dishwasher control circuit board. We will quickly repair your dishwasher control circuit board. We do more than just repair the part, we go to the root of the problem and use the high quality parts to ensure the issue does not return.
  • Estimated Repair Time is 3-5 business days.
  • 2 Year Warranty
  • Real-Time Repair Tracking
  • Our service is 100% guaranteed or your money back. Order today and save!
  • International Shipping Available
  • Free shipping available at online checkout!
$159.99
$219.99
Save: 27%
$159.99
$219.99
Save: 27%
Service Price:
Options Price:
Total:
Description

Description

This is a repair service for 700634 Bosch Dishwasher Control Board Repair.
For the following brands: Bosch

This repair is also for the following similar dishwasher control board part numbers:
700634.

Why Repairing with UpFix is the Better Choice

  1. Cost-Effective: Avoid the high cost of full appliance replacement. Repairing your control board with us can save you substantial amounts of money, preserving your appliances functionality without breaking the bank.
  2. Time-Efficient: Choosing to repair rather than replace can drastically reduce the downtime of your appliance. UpFix aims to restore your kitchen’s functionality quickly, eliminating the hassle of searching and waiting for new parts.
  3. Eco-Friendly: Repairing your appliance with UpFix is a step towards sustainability. By refurbishing your existing control board, you help reduce electronic waste and conserve natural resources, supporting environmental conservation efforts.

Our Expert Repair Process

When you send your defective control board to UpFix, it receives more than just a repair. Our technicians conduct a comprehensive diagnostic to identify and rectify faults. We replace not only the failing components but also upgrade other elements known to degrade over time, ensuring your control board returns to you in top condition.

How It Works


Once we receive your part, our trained and IPC certified technicians will run tests to identify the source of the problem. We will rebuild your part, replacing not only the failed components, but all components that are usually known to fail or go bad in this part. We want to make your experience as effortless as possible. All you have to do is send your part to us. Then after receiving the part back from us, just reinstall it and you’re back in business!

Wide Coverage

Our services are designed to accommodate a multitude of part numbers and models, enhancing the accessibility of our expert repairs across different brands.

What to Expect from UpFix

  • Mail your faulty part to us.
  • Our experts will rebuild and rigorously test your control board.
  • Receive your like-new control board, reinstall it, and enjoy your fully functional appliance once again.

Added Benefits of Choosing UpFix

  • Estimated Repair Time is 3-5 business days.

  • International shipping options to the USA and Canada.
  • Comprehensive testing post-repair to guarantee performance.
  • A 24-month warranty and lifetime phone support, underlining our commitment to quality and customer satisfaction.
  • We uphold the highest standards of integrity and community support in all our business practices.

Removal Instructions

700634 Bosch Dishwasher Control Board Repair

  1. Turn off breaker.
  2. Unplug your unit from the outlet.
  3. Take pictures of each step of the removal process to ensure all wires are correctly reinstalled. Failure to do so may cause severe damage or fires. Failure to reinstall correctly will void all warranties.
  4. Remove the part that needs to be repaired.
  5. Start your order today!
  6. We will provide you with a shipping label at checkout.

We take pride in our work and will take it a step further and fully inspect your control board and will replace failure prone components or parts that may be failing in the future. Each control board is fully tested to make sure it passes a full functional test.

Our service is 100 percent guaranteed or your money back. We stand by our services – If the part is going to fail, itll fail within the first 24 months. Thats why we got you covered with a 24-month warranty and lifetime phone support when you need us

Our goal is to save you hundreds of dollars, while continuing to provide an eco-friendly solution that reduces pollution. We drive our business towards consistent and profitable growth, with integrity and a commitment to the people and communities where we live and work. Our service is 100% guaranteed or your money back.



This repair service will fix these issues:

  • Constant heating
  • Dead circuit board
  • Dim/Dark Display
  • Dim/Dark Lights
  • Does not Cycle
  • Failed after power outage
  • Intermittent failures
  • Intermittent operation
  • LCD Display
  • No power
  • No power to heating element
  • No power to pump
  • Non-Responsive
  • Pump runs continuously

Will this service fix my problems?

A full diagnostic check should first be performed to eliminate all other possible causes for your symptoms, even if the symptoms match those specified on the common fault description.

If you send a unit in good working condition due to misdiagnosis, and our testing determines that there are no issues or faults with the unit, or if the part is beyond repair, then you will only be responsible for the shipping costs and a bench test fee of $39.99 may be applied.

IMPORTANT! If you are not sure that this part is the cause of the fault then we recommend that you do not go ahead with this purchase and instead seek further professional advice and diagnosis.


See Why Our Customers Love UpFix!





Benefits of using us:
  • Free return trip shipping
  • Save hundreds of dollars
  • High quality components
  • Fast & easy process
  • 100% guaranteed or your money back
  • Amazing customer service and support
  • IPC certified technicians (highest standard of quality craftsmanship)
  • Guaranteed OEM products
  • Refurbished and tested to meet manufacturers specifications
  • Hassle-free warranty that is much better than the warranties you get for new replacements.
How It Works

How It Works

Our services are fast and easy. Send us your failed part. We do more than just repair the part, we go to the root of the problem and use the best quality parts to ensure the issue does not return.

We take pride in our work and will take it a step further and fully inspect your control board and will replace failure prone components or parts that may be failing in the future. Each control board is fully tested to make sure it passes a full functional test. Our service is 100 percent guaranteed or your money back.


  1. Locate your product on our website.
  2. Match your symptoms with our descriptions to diagnose the issue.
  3. Place a repair order and receive a shipping label.
  4. Send your item to us.
  5. We'll repair and promptly ship it back to you!
Warranty

Warranty

Our service is 100 percent guaranteed or your money back.

For a full 24 months, our no-hassle warranty covers the repair. We will fix the item again if the repair fails within 24 months. If the component is not repairable, we will, at our discretion, either replace the part entirely or refund the cost of the repair.

We stand by our services – If the part is going to fail, itll fail within the first 3 months. Thats why we got you covered with a 24-month warranty and lifetime phone support when you need us

Part Numbers

700634

Error Codes
CodeDescriptionRecommended Action
E01There is a heat pump motor circuit fault at the main control board. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E0100There is a heat pump motor circuit fault at the main control board. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E0103There is a main control board relay fault/error. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E0105Your dishwasher has detected faulty (heater) electronics in the self-test. Contact Bosch Customer Support at 1-800-944-2904 for assistance.
E0106There is a wash arm diverter circuit in main control board fault/error. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E0107There is a main control board relay fault/error. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E0110Failure causing electronics miscommunication. Contact Bosch Customer Support at 1-800-944-2904 for assistance.
E02There is a main control board relay fault/error. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E03There is a main control board relay fault/error. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E04Your dishwasher has detected faulty (heater) electronics in the self-test. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E05There is a wash arm diverter circuit in main control board fault/error. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E06There is a door sensor circuit fault/error. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E07The Zeolite (Crystal Dry) fan motor is defective. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E09There is a heat pump internal heater fault/error. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E10There is a Zeolite (Crystal Dry) chamber heater fault/error. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E12There is limescale build-up in the heat pump. The dishwasher needs to be descaled. The Bosch descaler can be used to descale your dishwasher. Dishwashers are used on a regular basis which means that limescale can build up quickly, especially in hard water areas. To help your dishwasher work efficiently and effectively, and to ensure your dishes come out clean, regular descaling is important. To help avoid this issue in the future, use softening salt in your dishwasher if it comes with a water softener function.
E14There is a flow meter failure or an issue with water flowing into the dishwasher or the filling system. Contact Bosch Customer Support at 1-800-944-2904 for assistance.
E15The safety switch has detected water in the base of the dishwasher. Your leakage protection system has been activated. Please turn off the water inflow and contact Bosch Customer Support at 1-800-944-2904 for assistance.
E16 and E17There is an issue with water flowing into the dishwasher or the filling system. The water may not be able to enter the dishwasher. Check the inlet hose and make sure it isnt kinked or damaged. For further assistance on how to troubleshoot your dishwasher, contact Bosch Customer Support at 1-800-944-2904.
E18There is an issue with water flow into the dishwasher. The water level is too low, or water is not being pumped correctly. 1. Check the inlet hose and make sure it isnt kinked or damaged. 2. Make sure the water supply is turned on. The water flow rate should be 10 l/min. For further assistance, please contact Bosch Customer Support at 1-800-944-2904.
E19There is a detergent dispenser solenoid circuit fault/error. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E20There is a heat pump internal heater fault/error. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E2030There is a heat pump internal heater fault/error. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E2060There is limescale build-up in the heat pump. The dishwasher needs to be descaled. The Bosch descaler can be used to descale your dishwasher. Dishwashers are used on a regular basis which means that limescale can build up quickly, especially in hard water areas. To help your dishwasher work efficiently and effectively, and to ensure your dishes come out clean, regular descaling is important. To help avoid this issue in the future, use softening salt in your dishwasher if it comes with a water softener function.
E21The heat pump is blocked. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E2120There is a Zeolite (Crystal Dry) chamber heater fault/error. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E2130The Zeolite (Crystal Dry) fan motor is defective. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E22The dishwasher filter is blocked. The filter is the area where food particles get caught and it needs to be cleaned regularly. Remove and wash the filter under running water with mild soap and a soft brush to remove debris then reinstall.
E23There is an issue with the drain pump. This happens when the drain pump is blocked, clogged, or faulty. Contact Bosch Customer Support at 1-800-944-2904 for assistance.
E24The dishwasher is not draining properly due to the drain filter being blocked. 1. Check the inlet hose and ensure its not kinked or damaged. 2. The pump cover may be loose. The pump cover is located at the bottom of the dishwasher underneath the filter. Remove the filter to reveal the pump cover and ensure that it’s not loose. If you have trouble locating it, review your owners manual. 3. If the dishwasher drain hose is connected to a garbage disposals dishwasher drain connection, ensure that the plug is removed from the disposer’s dishwasher drain connection.
E25The drain pump is blocked or the drain pump cover is loose or missing. 1. Check to see if the drain pump cover is loose. The pump cover is located at the bottom of the dishwasher underneath the filter. Remove the filter to reveal the pump cover and ensure that it’s not loose. If you have trouble locating it, review your owner’s manual. 2. The drain pump may be blocked. The pump is located at the bottom of the dishwasher underneath the filter. First, remove the filter completely to reveal the drain pump cover. Next, pry off the pump cover with a spoon until it clicks. Grip the cover and pull upward until you feel resistance. Then pull forward to remove the cover completely. Check the pump and remove any debris and standing water with a sponge. Use caution as some debris may be sharp. If needed, review your owners manual for more specific instructions.
E27The house power supply to the unit is too low. Reset power to breaker for 30 seconds.If the error occurs again, contact an electrician to check incoming voltage to the appliance.
E3000There is a flow meter failure or an issue with water flowing into the dishwasher or the filling system. Contact Bosch Customer Support at 1-800-944-2904 for assistance.
E3100The safety switch has detected water in the base of the dishwasher. Your leakage protection system has been activated. Please turn off the water inflow and contact Bosch Customer Support at 1-800-944-2904 for assistance.
E3200There is an issue with water flow into the dishwasher. The water level is too low, or water is not being pumped correctly. 1. Check the inlet hose and make sure it isnt kinked or damaged. 2. Make sure the water supply is turned on. The water flow rate should be 10 l/min.
E3300 and E3400There is an issue with water flowing into the dishwasher or the filling system. The water may not be able to enter the dishwasher. Check the inlet hose and make sure it isnt kinked or damaged. For further assistance on how to troubleshoot your dishwasher, contact Bosch Customer Support at 1-800-944-2904.
E6001There is a heat pump internal heater fault/error. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E6002The heat pump is blocked. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E6101There is an issue with the drain pump. This happens when the drain pump is blocked, clogged, or faulty. Contact Bosch Customer Support at 1-800-944-2904 for assistance.
E6102The drain pump is blocked or the drain pump cover is loose or missing. 1. Check to see if the drain pump cover is loose. The pump cover is located at the bottom of the dishwasher underneath the filter. Remove the filter to reveal the pump cover and ensure that it’s not loose. If you have trouble locating it, review your owner’s manual. 2. The drain pump may be blocked. The pump is located at the bottom of the dishwasher underneath the filter. First, remove the filter completely to reveal the drain pump cover. Next, pry off the pump cover with a spoon until it clicks. Grip the cover and pull upward until you feel resistance. Then pull forward to remove the cover completely. Check the pump and remove any debris and standing water with a sponge. Use caution as some debris may be sharp. If needed, review your owners manual for more specific instructions.
E6103The dishwasher is not draining properly due to the drain filter being blocked. 1. Check the inlet hose and ensure its not kinked or damaged. 2. The pump cover may be loose. The pump cover is located at the bottom of the dishwasher underneath the filter. Remove the filter to reveal the pump cover and ensure that it’s not loose. If you have trouble locating it, review your owners manual. 3. If the dishwasher drain hose is connected to a garbage disposals dishwasher drain connection, ensure that the plug is removed from the disposer’s dishwasher drain connection.
E6160PowerControl™ (Controlled Lower Spray Arm) reference position not found. Contact Bosch Customer Support at 1-800-944-2904 for assistance.
E6900There is a detergent dispenser solenoid circuit fault/error. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E8000There is a door sensor circuit fault/error. Reset power to breaker for 30 seconds. If not resolved, call Bosch Customer Support at 1-800-944-2904 for assistance.
E9001The house power supply to the unit is too low. Reset power to breaker for 30 seconds.If the error occurs again, contact an electrician to check incoming voltage to the appliance.
E9240The dishwasher filter is blocked. The filter is the area where food particles get caught and it needs to be cleaned regularly. Remove and wash the filter under running water with mild soap and a soft brush to remove debris then reinstall.
H01This is not an actual error code, but an indication that the start-up timer menu has been accessed to delay the start of the cycle, with H01 for a 1-hour delay and h02 for a 2-hour delay, and so on. To delete timer programming, press the [4] + or – button until h:00 is displayed on the digital display.
