SKU: 30691

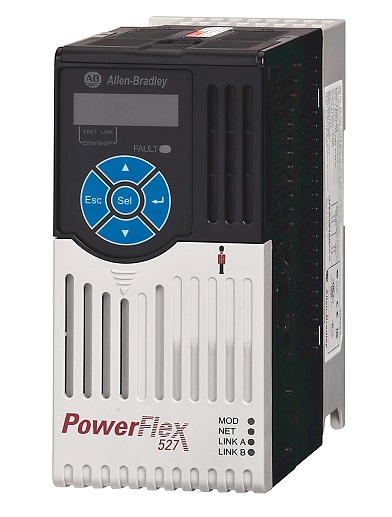

25C-E1P7N104 Allen Bradley AC VFD Variable Frequency Drive Repair

Industrial VFD Repair Service – Save Big and Keep Your Settings. Our services are fast and easy. Send us your failed VFD Variable Frequency Drive. We will quickly repair your faulty VFD. We provide a quick turnaround time and a high repair success rate at a low repair cost.
UpFix is NOT an authorized distributor for Allen Bradley.

Experience the most cost-effective and efficient solution for your industrial VFD issues with UpFix expert repair service. By choosing to repair your original VFD, you not only save significantly compared to the cost of buying a new unit, but you also retain all the custom programming and configurations specific to your operational needs.
  • Estimated Repair Time is 3-5 business days.
  • 2 Year Warranty
  • Free Round-Trip Shipping
  • Real-Time Repair Tracking
  • Our service is 100% guaranteed or your money back. Order today and save!

International Shipping Available:
Ships to USA and Canada

Free round trip shipping available at online checkout!
$458.39
Repair yours
Send your original part for repair service
$458.39
Service Price:
Options Price:
Total:
In-stock item
Send me a good working part
Description

This is a repair service for 25C-E1P7N104 Allen Bradley AC VFD Variable Frequency Drive Repair.
UpFix is NOT an authorized distributor for Allen Bradley.

Once we receive your part, our highly trained and IPC certified technicians will run tests to identify the source of the problem. We will rebuild your part, replacing not only the failed components, but all components that are usually known to fail or go bad in this part. We want to make your experience as effortless as possible. All you have to do is send your part to us. Then after receiving the part back from us, just reinstall it and you’re back in business!

Estimated Repair Time is 3-5 business days.

International Shipping Available: Ships to USA and Canada

How it works


We take pride in our work and will take it a step further and fully inspect your control board and will replace failure prone components or parts that may be failing in the future. Each part is fully tested to make sure it passes a full functional test.

Our service is 100 percent guaranteed or your money back. We stand by our services, thats why we got you covered with a 24-month warranty and lifetime phone support when you need us

Our goal is to save you hundreds of dollars, while continuing to provide an eco-friendly solution that reduces pollution. We drive our business towards consistent and profitable growth, with integrity and a commitment to the people and communities where we live and work. Our service is 100% guaranteed or your money back.




This repair service will fix these issues:

  • Auto Tune Failure
  • Checksum Fault
  • Does Not Enable
  • Does Not Power
  • Fails Under Load
  • Fans Not Turning On
  • Ground Fault
  • Heatsink Fault
  • I/O Terminal Not Working
  • Input Phase Fault
  • Keypad Issue
  • Keys Dont Press
  • No Output
  • Output Phase Fault
  • Output Runs Erratically
  • Overcurrent Fault
  • Overvoltage Fault
  • Power Loss
  • Undervoltage Fault
  • Unit Had Blown Up
  • Unit Smoked



Cost-Effective
Repairing your existing VFD can be substantially more affordable than purchasing a new one. Enjoy significant savings while maintaining optimal functionality.

No Reconfiguration Needed
One of the biggest advantages of repairing your original VFD is the elimination of reprogramming. Your VFD will be returned to you with all its original settings intact, ensuring a seamless reintroduction into your system without the need for costly and time-consuming reconfiguration.

Quick Turnaround
We understand the importance of minimizing downtime. Our skilled technicians ensure a quick and efficient repair process, getting your operations back up and running in no time.

Quality Assurance
We use only the highest quality parts and the latest techniques in our repair processes, ensuring your VFD returns to you in top-notch condition, often better than its pre-fault state.

Extended Life for Your Equipment
Repairing and maintaining your existing VFD can significantly extend its life, making it a sustainable choice for your business and the environment.

Expert Support
Our team of experienced technicians is well-versed in a wide range of VFD brands and models, providing you with knowledgeable support and advice every step of the way.

Our Commitment
At UpFix, we are committed to providing you with a reliable, high-quality repair service that keeps your operations smooth and efficient. Trust us to restore your VFD to its optimal performance, ensuring your business runs uninterrupted.
Will this service fix my problems?

A full diagnostic check should first be performed to eliminate all other possible causes for your symptoms, even if the symptoms match those specified on the common fault description.

If you send a unit in good working condition due to misdiagnosis, and our testing determines that there are no issues or faults with the unit, or if the part is beyond repair, then you will only be responsible for the shipping costs and a bench test fee of $39.99 may be applied.

IMPORTANT! If you are not sure that this part is the cause of the fault then we recommend that you do not go ahead with this purchase and instead seek further professional advice and diagnosis.


Benefits of using us:
  • Free round trip shipping
  • Fast & easy process
  • High quality components
  • 100% guaranteed or your money back
  • Save hundreds of dollars
  • Amazing customer service and support
  • No programming needed
  • Plug-n-play
  • Refurbished and tested to meet manufacturers specifications
  • IPC certified technicians (highest standard of quality craftsmanship)
  • Hassle-free warranty that is much better than the warranties you get for new replacements.
Warranty

Warranty

Our service is 100 percent guaranteed or your money back.

For a full 24 months, our no-hassle warranty covers the repair. We will fix the item again if the repair fails within 24 months. If the component is not repairable, we will, at our discretion, either replace the part entirely or refund the cost of the repair.

We stand by our services – If the part is going to fail, itll fail within the first 3 months. Thats why we got you covered with a 24-month warranty and lifetime phone support when you need us

How It Works

How it works

Our services are fast and easy. Reducing downtime is extremely important to us. Our standard repair is usually under 1 week. Meanwhile, offering a high-quality repair service with a focus on quick, long-lasting repairs at competitive prices.


We take pride in our work and not only fully inspecting/repairing your faulty part, but will take it a step further and will replace failure prone components or parts that may be failing in the future. Each control board is fully tested to make sure it passes a full functional test. Our service is 100 percent guaranteed or your money back.


  1. Carefully remove your part.
  2. Securely pack your part, using the correct box so that your part cannot be damaged in transit. Take special care when packing.
  3. Add item to shopping cart and check out. We will provide you with shipping label to send the part to us. You will not need to pay anything until your part is full repaired.
  4. Inside the package include: Your Name, Return Address, Phone Number.


  5. International Shipping Available
    We ship to USA and Canada
Part Numbers

25CE1P7N104

Error Codes
CodeDescriptionRecommended Action
FLT M10 – CONTROL MODULE OVERTEMPERATURE FLControl Module Overtemperature FaultPROBLEM: 1) The temperature sensor on the Main Control Board detected excessive heat. SOLUTION: 1) • Reduce drive ambient temperature. • Verify that airflow through drive is not obstructed. • Check control module internal fan. Replace if error persists.
FLT M19 – DECEL OVERRIDEDecel OverridePROBLEM: 1) The drive is not following a commanded deceleration because it is attempting to limit bus voltage. SOLUTION: 1) • Reprogram Bus Regulator Action to eliminate any “Adjustable Freq” selection. • Reprogram Bus Regulator Action to Shunt Regulator and add external shunt. • Correct AC input line instability or add an isolation transformer. • Reset drive.
FLT M21 – MOTOR TEST FAILUREMotor Test FailurePROBLEM: 1) The Motor Test procedure has failed. SOLUTION: 1) • Verify sizing of the drive and motor. • Verify motor data. • Check motor power wiring.
FLT M26 – RUNTIME ERRORRuntime ErrorPROBLEM: 1) The drive firmware encountered an unrecoverable runtime error. SOLUTION: 1) • Cycle power. • Reset the drive. • Return drive for repair if fault continues.
FLT M28 – SAFETY MODULE COM ERRORSafety Module Communication ErrorPROBLEM: 1) Error in communicating to the Safety module. SOLUTION: 1) • Cycle power. • Replace module.
FLT S03 – MTR OVERSPEED FLMotor Overspeed Factory Limit FaultPROBLEM: 1) Motor speed has exceeded 590 Hz. SOLUTION: 1) Check control loop tuning.
FLT S04 – MTR OVERSPEED ULMotor Overspeed User Limit FaultPROBLEM: 1) Motor speed has exceeded the user defined speed limit that is given by Motor Overspeed User Limit. SOLUTION: 1) Check control loop tuning.
FLT S07 – MTR OVERLOAD FLMotor Thermal Overload Factory Limit FaultPROBLEM: 1) The motor thermal model has exceeded its factory set thermal capacity limit of 110%. SOLUTION: 1) Modify the command profile to reduce speed or increase time.
FLT S08 – MTR OVERLOAD ULMotor Thermal Overload User Limit FaultPROBLEM: 1) The motor thermal model has exceeded the thermal capacity limit that is given by Motor Thermal Overload User Limit. SOLUTION: 1) • Modify the command profile. • Increase the Motor Thermal Overload UL attribute value.
FLT S10 – INV OVERCURRENTInverter Overcurrent FaultPROBLEM: 1) Inverter current has exceeded the instantaneous current limit (determined by hardware). SOLUTION: 1) • Check motor power cable for shorts. • Verify that motor windings are not shorted. • Verify motor power wire gauge. • Operate within the continuous power rating. • Reduce acceleration times.
FLT S11 – INV OVERTEMP FLInverter Overtemperature Factory Limit FaultPROBLEM: 1) The measured inverter temperature has exceeded the factory set temperature limit. SOLUTION: 1) • Modify the command profile to reduce speed or increase time. • Reduce drive ambient temperature. • Verify that airflow through drive is not obstructed.
FLT S13 – INV OVERLOAD FLInverter Thermal Overload Factory Limit FaultPROBLEM: 1) The thermal model for the power transistors indicates that the temperature has exceeded the factory set thermal capacity rating of 110%. SOLUTION: 1) Modify the command profile to reduce speed or increase time.
FLT S16 – GROUND CURRENTGround Current Factory Limit FaultPROBLEM: 1) The sensing circuitry in the power stage has detected excessive ground current. SOLUTION: 1) • Check motor power wiring; check power cable for shorts. • Replace motor if the fault persists.
FLT S23 – AC PHASE LOSSAC Single Phase Loss FaultPROBLEM: 1) A single AC input phase was lost while the drive was enabled. SOLUTION: 1) Check AC input voltage on all phases.
FLT S25 – PRECHARGE FAILUREPre-charge Failure FaultPROBLEM: 1) The pre-charge circuit monitoring algorithm detected that the DC bus did not reach a factory set voltage level after charging for a period of time. SOLUTION: 1) • Check AC input voltage on all phases. • Check input power wiring. • Replace drive if fault persists.
FLT S29 – BUS OVERLOAD FLBus Regulator Thermal Overload Factory Limit FaultPROBLEM: 1) The shunt thermal model has exceeded its factory set thermal capacity limit. SOLUTION: 1) • Modify the duty cycle of the application. • Add external shunt for additional capacity. • Add capacitor module if needed.
FLT S34 – BUS UNDERVOLT ULBus Undervoltage User Limit FaultPROBLEM: 1) DC Bus voltage level is below the user set limit as given by Bus Undervoltage User Limit. SOLUTION: 1) • Verify voltage level of the incoming AC. • Monitor AC power source for glitches or line droop. • Install UPS on AC input. • Decrease Bus Undervoltage UL attribute value.
FLT S35 – BUS OVERVOLT FLBus Overvoltage Factory Limit FaultPROBLEM: 1) DC Bus voltage level is above the factory set limit as determined by the configured input voltage. SOLUTION: 1) • Change the deceleration or motion profile of all drives that are connected to the DC bus. • Unplug the shunt connector and measure the resistance of the shunt. • Replace drive if shunt resistor is open.
FLT S37 – BUS POWER LOSSBus Power LossPROBLEM: 1) DC Bus voltage level is below the Bus Power Loss Threshold for more than the timeout period specified Bus Power Loss Time value. SOLUTION: 1) • Verify voltage level of the incoming AC. • Monitor AC power source for glitches or line droop. • Install UPS on AC input.
FLT S41 – FDBK SIGNAL NOISE FLFeedback Signal Noise FaultPROBLEM: 1) Noise induced A/B channel state changes (illegal states) from a feedback device were detected by the drive. Specifically, the number of these noise events that have occurred on this channel has exceeded the Feedback Noise Factory Limit. The offending feedback channel number is encoded in the associated Fault/Alarm Sub Code. SOLUTION: 1) • Check motor feedback cable and connector. • Cycle power. • Check feedback shield connection. • Reduce shock and vibration to motor. • Replace motor if fault continues. • Verify all HTL/TTL DIP switches on the 25-ENC-2/B encoder are set in the same position.
FLT S43 – FDBK SIG FLFeedback Signal Loss Factory Limit FaultPROBLEM: 1) The absolute value of the differential A/B signals is below a factory limit. SOLUTION: 1) • Check motor feedback cable and connector. • Check that motor power cable and feedback wire shields are secured correctly. • Check that motor frame is grounded correctly.
FLT S50 – HARDWARE OVERTRAVEL POSITIVEHardware Overtravel PositivePROBLEM: 1) Axis moved beyond the physical travel limits in the positive direction and activated the Positive Overtravel limit switch. SOLUTION: 1) • Check wiring. • Verify motion profile. • Verify axis configuration in software.
FLT S51 – HARDWARE OVERTRAVEL NEGATIVEHardware Overtravel NegativePROBLEM: 1) Axis moved beyond the physical travel limits in the negative direction and activated the Negative Overtravel limit switch. SOLUTION: 1) • Check wiring. • Verify motion profile. • Verify axis configuration in software.
FLT S54 – POSN ERRORExcessive Position Error FaultPROBLEM: 1) The position error of the position control loop has exceeded the value that is given by Position Error Tolerance for a time period that is given by Position Error Tolerance Time. SOLUTION: 1) • Check position loop tuning. • Increase the feedforward gain. • Verify sizing of the drive and motor. • Check motor power wiring. • Increase Position Error Tolerance and/or Position Error Tolerance Time attribute values.
FLT S55 – VEL ERRORExcessive Velocity Error FaultPROBLEM: 1) The velocity error of the velocity control loop has exceeded the value that is given by Velocity Error Tolerance for a time period that is given by Velocity Error Tolerance Time. SOLUTION: 1) • Check velocity loop tuning. • Reduce acceleration. • Verify sizing of the drive and motor. • Check motor power wiring. • Increase Velocity Error Tolerance and/or Velocity Error Tolerance Time attribute values
FLT S56 – OVERTORQUE LIMITOvertorque Limit FaultPROBLEM: 1) Motor torque has risen above user-defined maximum torque level that is given by Overtorque Limit for a time period that is given by Overtorque Limit Time. SOLUTION: 1) • Verify Torque Trim value. • Verify motion profile. • Verify sizing of the drive and motor. • Increase Overtorque Limit and/or Overtorque Limit Time attribute values.
FLT S57 – UNDERTORQUE LIMITUndertorque Limit FaultPROBLEM: 1) Motor torque has dropped below user defined minimum torque level that is given by Undertorque Limit for a time period that is given by Undertorque Limit Time. SOLUTION: 1) • Verify motion profile. • Verify sizing of the drive and motor. • Decrease Undertorque Limit and/or Undertorque Limit Time attribute values
FLT S61 – ENABLE INPUT DEACTIVATEDEnable Input DeactivatedPROBLEM: 1) Enable Input has been deactivated while the axis power structure is in Running state, enabled, and supplying current to the DC Bus or motor. SOLUTION: 1) • Verify Enable Input level. • Check Enable Input wiring.
INHIBIT M05 – SAFE TORQUE OFFStart Inhibit – Safe Torque OffPROBLEM: 1) The safety function has disabled the power structure. SOLUTION: 1) • Check safety input wiring. • Check state of safety devices.
INHIBIT S01 – AXIS ENABLE INPUTAxis Enable InputPROBLEM: 1) Axis Enable Input is not active. SOLUTION: 1) • Verify Enable Input level. • Check Enable Input wiring
INHIBIT S02 – MOTOR NOT CONFIGUREDMotor Not ConfiguredPROBLEM: 1) The motor has not been properly configured for use. SOLUTION: 1) Verify motor configuration in the Studio 5000 Logix Designer application.
INHIBIT S05 – SAFE TORQUE OFFStart Inhibit – Safe Torque OffPROBLEM: 1) The safety function has disabled the power structure. SOLUTION: 1) • Check that Ethernet components such as cables are secured and switches are operational. • Check state of safety devices.
INIT FLT M14 – INVALID SAFETY FIRMWAREInvalid Safety FirmwarePROBLEM: 1) The safety firmware is not compatible with the drive firmware, or the main safety firmware is missing. SOLUTION: 1) • Cycle power. • Upgrade drive firmware. • Return drive for repair if fault continues.
INIT FLT M15 – POWER BOARDPower Board Checksum ErrorPROBLEM: 1) The power board has a checksum error. SOLUTION: 1) • Cycle power. • Reset the drive. • Return drive for repair if fault continues.
INIT FLT M22 – ILLEGAL ADDRESSIllegal IP Address ConfigurationPROBLEM: 1) Invalid Ethernet IP Address configuration or device Node Address is out of range (>254) For example, this fault will occur when the IP address and Gateway address are identical. When this fault occurs, IP address configuration will be changed to DHCP SOLUTION: 1) Change IP address, subnet mask, and gateway address to a legal configuration and cycle power.
INIT FLT S03 – NVMEM CHKSUMNonvolatile Memory Checksum ErrorPROBLEM: 1) Data in the nonvolatile memory has a checksum error. SOLUTION: 1) • Cycle power. • Reset the drive. • Return drive for repair if fault continues.
NODE ALARM 01 – LATE CTRL UPDATEControl Connection Update AlarmPROBLEM: 1) Updates from the controller have been late. SOLUTION: 1) • Remove unnecessary network devices from the motion network. • Change network topology so that fewer devices share common paths. • Use high-performance network equipment. • Use shielded cables. • Separate signal wiring from power wiring.
NODE ALARM 03 – CLOCK JITTERClock Jitter AlarmPROBLEM: 1) The sync variance has exceeded the sync threshold while the device is running in sync mode. SOLUTION: 1) • Check the Ethernet connection. • Check controller and Ethernet switch operation.
NODE ALARM 04 – CLOCK SKEW ALARMClock Skew AlarmPROBLEM: 1) The controller time and the drive system time are not the same. SOLUTION: 1) • Check the Ethernet connection. • Check controller and Ethernet switch operation.
NODE ALARM 05 – CLOCK SYNC ALARMClock Sync AlarmPROBLEM: 1) Drive local clock has lost synchronization with controller's clock for a short time during synchronous operation. SOLUTION: 1) • Check the Ethernet connection. • Check controller and Ethernet switch operation.
NODE FLT 01 – LATE CTRL UPDATEControl Connection Update FaultPROBLEM: 1) Several consecutive updates from the controller have been lost. SOLUTION: 1) • Remove unnecessary network devices from the motion network. • Change network topology so that fewer devices share common paths. • Use high-performance network equipment. • Use shielded cables. • Separate signal wiring from power wiring.
NODE FLT 02 – PROC WATCHDOG nnProcessor Watchdog FaultPROBLEM: 1) The processor on the power board or control board failed to update in a certain amount of time. The nn sub-codes 00…05 are internal and result in the same possible solution. SOLUTION: 1) • Cycle power. • Update the drive firmware. • Return drive for repair if fault continues.
NODE FLT 03 – HARDWARE 00Hardware Fault - PwrIFPROBLEM: 1) Communication with the power board could not be established. SOLUTION: 1) • Cycle power. • Update the drive firmware. • Return drive for repair if fault continues.
NODE FLT 03 – HARDWARE 01Hardware Fault - Piccolo HWPROBLEM: 1) DSP chip on the power board failure. SOLUTION: 1) • Cycle power. • Return motor for repair if fault continues.
NODE FLT 05 – CLOCK SKEW FLTClock Skew FaultPROBLEM: 1) The controller time and the drive system time are not the same. SOLUTION: 1) • Cycle power. • Check controller and Ethernet switch operation.
NODE FLT 06 – LOST CTRL CONNLost Controller Connection FaultPROBLEM: 1) Communication with the controller has been lost. SOLUTION: 1) • Check Ethernet connection. • Check controller and Ethernet switch operation.
NODE FLT 07 – CLOCK SYNCClock Sync FaultPROBLEM: 1) Drive local clock has lost synchronization with controller's clock and was not able to resynchronize within allotted time. SOLUTION: 1) • Check Ethernet connection. • Check controller and Ethernet switch operation.
NODE FLT 09 – DUPLICATE IP ADDRESSDuplicate IP Address FaultPROBLEM: 1) Several consecutive updates from the controller have been lost. SOLUTION: 1) Select an IP address not already in use on the network.
Models

This control board may be found in models similar to the following:

25C-E1P7N104
